Bill of Materials

There are several different parts you will need for this project that will be different than the original PiGRRL Zero design provided by Adafruit. I've tried to group all of the parts by categories so it's easier to understand, and also include costs to make it easier for folks to understand the total project cost.

Link to Google Sheet of Detailed Bill of Materials

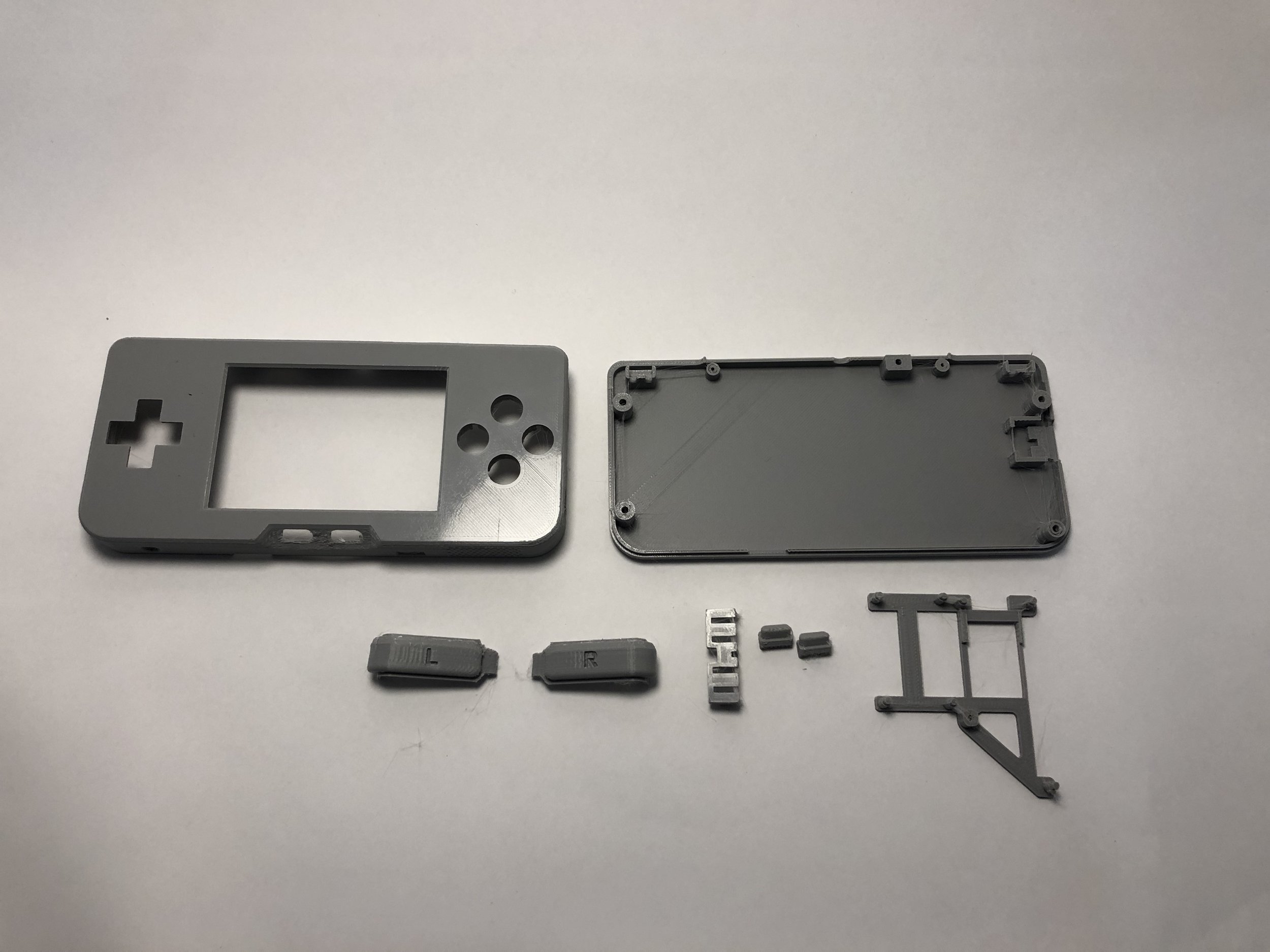

3D PRINTED Parts

Link to 3D Parts (Thingiverse)

  • Top Case (PLA)
  • Bottom Case (PLA)
  • Start/Select Button Holder (PLA)
  • Left Shoulder (PLA)
  • Right Shoulder (PLA)
  • Pi Zero/Amp Holder (PLA)
  • Power Button (TPU)
  • OPTIONAL:
    • Washers (PLA)
    • USB Cover (PLA)

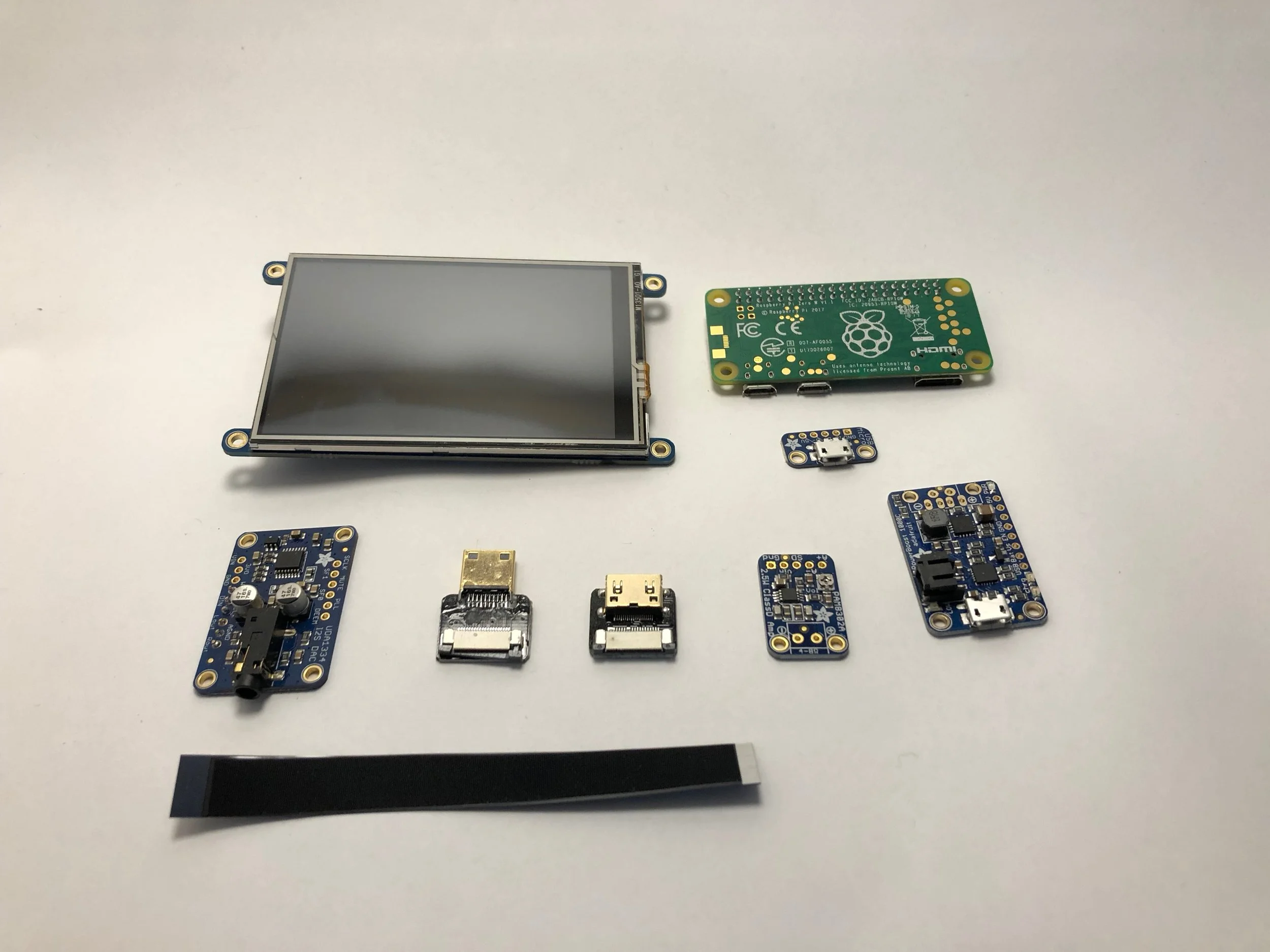

ADAFRUIT PARTS

  • 3.5" PiTFT
  • Pi Zero WH (w/ Header)
  • Powerboost 1000c
  • 2000 MAH Battery
  • I2S Decoder
  • Mono Amplifier
  • MicroUSB Adapter
  • MicroSD Card

OTHER PARTS

  • (1) Custom PCB
  • (8) Soft 8mm Buttons
  • (4) Soft Two Prong Buttons
  • (1) Set of SNES Buttons
  • (10) Threaded Inserts
  • (4) M2.5x6mm Screws
  • (6) M2.5x10mm Screws
  • (1) 1.5W Rect. Speaker
  • (1) SPST Power Button
  • (1) Resistor
  • (1) Transistor
